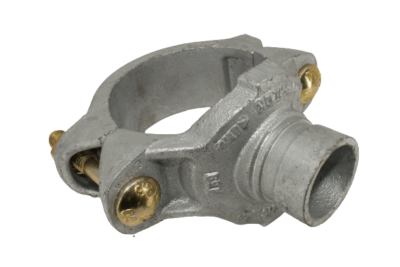

Mechanical Tee Grooved Galvanised Pipe Fitting

Buy Mechanical Tee Galvanised Grooved Pipe Fitting from UK's leading Red Grooved Pipe fitting supplier. Best Prices

Grooved-Pipe-Fitting-Mechanical-Tee-Galvanised

Reducing Sizes

Clear

Return to Top
Order
Description
Quick Order (CSV)

SKU	-	Price
GR-G-MT-200-125	2" X 1-1/4"	£10.22 £12.26 incl. VAT
GR-G-MT-200-150	2" X 1-1/2"	£10.22 £12.26 incl. VAT
GR-G-MT-250-125	2-1/2" x 1-1/4"	£14.97 £17.96 incl. VAT
GR-G-MT-250-150	2-1/2 X 1-1/2	£14.97 £17.96 incl. VAT
GR-G-MT-300-125	3" X 1-1/4"	£21.27 £25.52 incl. VAT
GR-G-MT-300-150	3" X 1-1/2"	£21.27 £25.52 incl. VAT
GR-G-MT-300-200	3" X 2"	£21.27 £25.52 incl. VAT
GR-G-MT-400-125	4" x 1-1/4"	£27.56 £33.07 incl. VAT
GR-G-MT-400-150	4" x 1-1/2"	£27.56 £33.07 incl. VAT
GR-G-MT-400-200	4" X 2"	£27.56 £33.07 incl. VAT
GR-G-MT-400-250	4" X 2-1/2"	£27.56 £33.07 incl. VAT
GR-G-MT-400-300	4" X 3"	£27.56 £33.07 incl. VAT
GR-G-MT-600-125	6" X 1-1/4"	£41.11 £49.33 incl. VAT
GR-G-MT-600-150	6" X 1-1/2"	£41.11 £49.33 incl. VAT
GR-G-MT-600-200	6" X 2"	£41.11 £49.33 incl. VAT
GR-G-MT-600-250	6" X 2-1/2"	£41.11 £49.33 incl. VAT
GR-G-MT-600-300	6" X 3"	£41.11 £49.33 incl. VAT
GR-G-MT-600-400	6" x 4"	£41.11 £49.33 incl. VAT
GR-G-MT-800-200	8" X 2"	£66.56 £79.87 incl. VAT
GR-G-MT-800-250	8" X 2-1/2"	£66.56 £79.87 incl. VAT
GR-G-MT-800-300	8" X 3"	£66.56 £79.87 incl. VAT

Mechanical Tee Grooved Galvanised Pipe Fitting

Galvanised grooved pipe systems allow for quick installation and are designed for minimum pressure drop.

For our Galvanised Pipe Click Here.

For our Mechanical Tee Grooved Red Click Here.

Cast Fittings:
Ductile Iron Conforming to ASTM A-536
Finish:
Standard Red Colour Rust Inhibiting Paint
Optional Hot Dipped Zinc Galvanized conforming to ASTM A-153
Approvals:
LPCB Approved 1” (33.7mm O.D) up to 8″ (219.1mm O.D).
FM Approved 1” (33.7mm O.D) up to 12″ (323.9mm O.D).
UL Listed
Max Working Pressure:
34.4 Bar / 500 PSI
