Handrail Standard Footplate – Type 3C

Handrail Standard Footplate – Type 3C (150x65x12mm, Holes: 25-65-90)

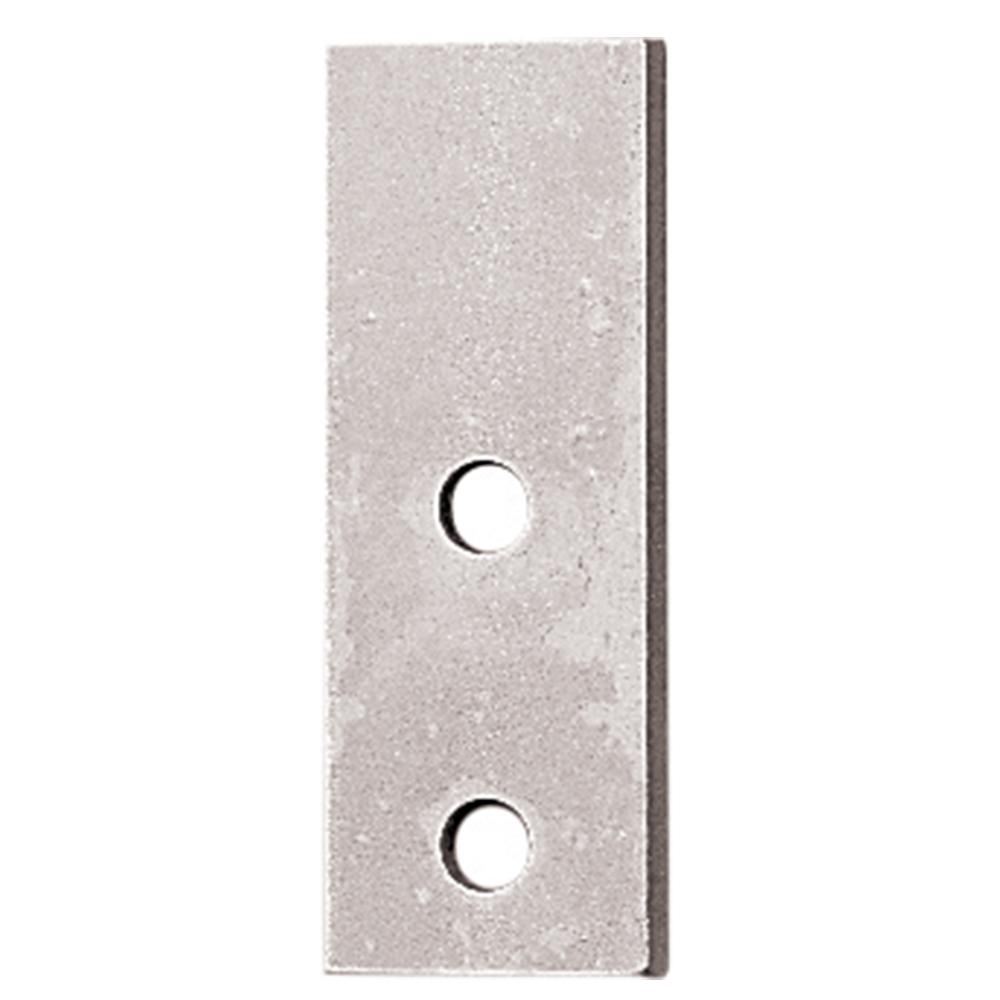

The Handrail Standard Footplate Type 3C is a robust steel base plate designed to provide a secure mounting point for vertical handrail standards in modular railing systems. With precise hole spacing and durable construction, it is ideal for fixed installations where structural integrity and long-term performance are critical.

Key Features:

• Durable Construction: Made from 12mm thick mild steel, providing exceptional strength and stability for handrail posts in demanding environments.

• Compact Design: Sized at 150mm x 65mm, offering a strong but space-efficient base for upright supports.

• Pre-Drilled Fixing Holes: Features three precision-drilled mounting holes with centers spaced at 25mm, 65mm, and 90mm, allowing for quick and accurate installation.

• Type 3C Configuration: Designed for compatibility with 3C-type handrail systems and upright standards.
