SKU	-	Price
GR-R-E90-100	1"	£2.85 £3.42 incl. VAT
GR-R-E90-125	1-1/4"	£3.79 £4.55 incl. VAT
GR-R-E90-150	1-1/2"	£3.33 £4.00 incl. VAT
GR-R-E90-200	2"	£6.29 £7.55 incl. VAT
GR-R-E90-250	2-1/2"	£9.27 £11.12 incl. VAT
GR-R-E90-300	3"	£12.48 £14.98 incl. VAT
GR-R-E90-400	4"	£16.16 £19.39 incl. VAT
GR-R-E90-600	6"	£32.09 £38.51 incl. VAT
GR-R-E90-800	8"	£94.01 £112.81 incl. VAT
GR-R-E90-1000	10"	£154.56 £185.47 incl. VAT
GR-R-E90-1200	1/2"	£195.30 £234.36 incl. VAT

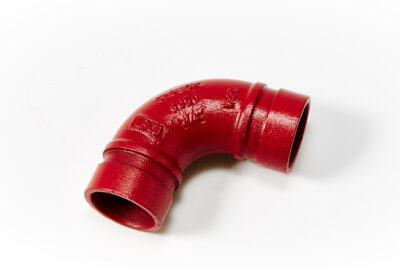

Elbow 90 Degree Grooved Elbow Red

Red grooved pipe systems allow for quick installation and are designed for minimum pressure drop.

For our Red Oxide Pipe Click Here.

For our Elbow 90 Degree Grooved Elbow Galvanised Click Here.

Cast Fittings:
Ductile Iron Conforming to ASTM A-536
Finish:
Standard Red Colour Rust Inhibiting Paint
Optional Hot Dipped Zinc Galvanized conforming to ASTM A-153
Approvals:
LPCB Approved 1” (33.7mm O.D) up to 8″ (219.1mm O.D).
FM Approved 1” (33.7mm O.D) up to 12″ (323.9mm O.D).
UL Listed
Max Working Pressure:
34.4 Bar / 500 PSI
